pcpp::GvcpDiscoveryAcknowledgeLayer::SerializedFields Struct Reference

#include <GvcpLayer.h>

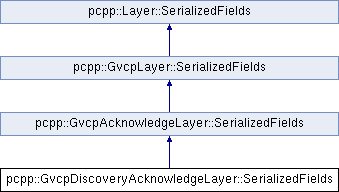

Inheritance diagram for pcpp::GvcpDiscoveryAcknowledgeLayer::SerializedFields:

Static Public Member Functions
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::GvcpAcknowledgeLayer::SerializedFields
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::GvcpLayer::SerializedFields
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::Layer::SerializedFields
static std::vector< FieldDescriptor >	all ()

Static Public Attributes
static const FieldDescriptor	VersionMajor
	GigE Vision spec version major number.
static const FieldDescriptor	VersionMinor
	GigE Vision spec version minor number.
static const FieldDescriptor	MacAddress
	Device MAC address, as a string.
static const FieldDescriptor	IpAddress
	Device IP address, as a string.
static const FieldDescriptor	SubnetMask
	Device subnet mask, as a string.
static const FieldDescriptor	GatewayIpAddress
	Device default gateway IP address, as a string.
static const FieldDescriptor	ManufacturerName
	Manufacturer name.
static const FieldDescriptor	ModelName
	Model name.
static const FieldDescriptor	DeviceVersion
	Device version.
static const FieldDescriptor	ManufacturerSpecificInformation
	Manufacturer specific information.
static const FieldDescriptor	SerialNumber
	Serial number.
static const FieldDescriptor	UserDefinedName
	User defined name.
static constexpr uint16_t	MaxID = GvcpAcknowledgeLayer::SerializedFields::MaxID + 12
	Maximum field ID used by GvcpDiscoveryAcknowledgeLayer.
Static Public Attributes inherited from pcpp::GvcpAcknowledgeLayer::SerializedFields
static const FieldDescriptor	Status
	Response status value.
static const FieldDescriptor	StatusName
	Name of the response status, or "Unknown".
static const FieldDescriptor	AckId
	Acknowledge ID.
static constexpr uint16_t	MaxID = GvcpLayer::SerializedFields::MaxID + 3
	Maximum field ID used by GvcpAcknowledgeLayer.
Static Public Attributes inherited from pcpp::GvcpLayer::SerializedFields
static const FieldDescriptor	Command
	Command or acknowledge value.
static const FieldDescriptor	CommandName
	Name of the command or acknowledge value, or "Unknown".
static constexpr uint16_t	MaxID = Layer::SerializedFields::MaxID + 2
	Maximum field ID used by GvcpLayer.
Static Public Attributes inherited from pcpp::Layer::SerializedFields
static const FieldDescriptor	ProtocolName
	Field descriptor for the layer protocol name.
static const FieldDescriptor	ProtocolId
	Field descriptor for the layer protocol ID.
static const FieldDescriptor	Length
	Field descriptor for the layer length.
static constexpr uint16_t	MaxID = 1
	Maximum field ID used by the layer.

Detailed Description

Fields written by GvcpDiscoveryAcknowledgeLayer's serializeLayer(), in addition to GvcpAcknowledgeLayer::SerializedFields.

Member Function Documentation

all()

static std::vector<FieldDescriptor> pcpp::GvcpDiscoveryAcknowledgeLayer::SerializedFields::all ( )

inlinestatic

Returns

All field descriptors for GvcpDiscoveryAcknowledgeLayer
