#include <GvcpLayer.h>

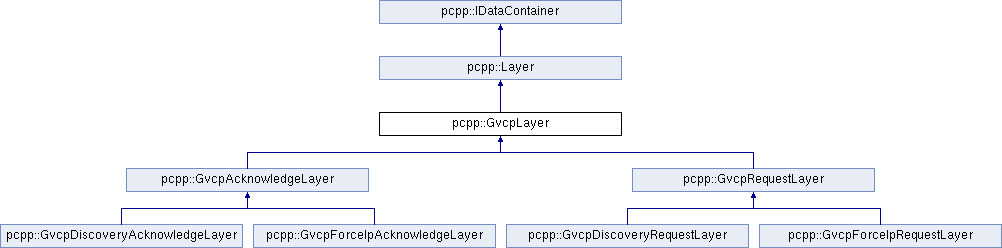

Inheritance diagram for pcpp::GvcpLayer:

Classes
struct	SerializedFields

Public Types
enum class	GvcpCommand : uint16_t { DiscoveredCmd = 0x0002 , DiscoveredAck = 0x0003 , ForceIpCmd = 0x0004 , ForceIpAck = 0x0005 , PacketResendCmd = 0x0040 , PacketResendAck = 0x0041 , ReadRegCmd = 0x0080 , ReadRegAck = 0x0081 , WriteRegCmd = 0x0082 , WriteRegAck = 0x0083 , ReadMemCmd = 0x0084 , ReadMemAck = 0x0085 , WriteMemCmd = 0x0086 , WriteMemAck = 0x0087 , PendingAck = 0x0089 , EventCmd = 0x00C0 , EventAck = 0x00C1 , EventDataCmd = 0x00C2 , EventDataAck = 0x00C3 , ActionCmd = 0x0100 , ActionAck = 0x0101 , Unknown = 0xFFFF }

Public Member Functions
virtual GvcpCommand	getCommand () const =0

virtual uint16_t	getDataSize () const =0

void	parseNextLayer () override
	Creates a PayloadLayer from the rest of the message, if there is data after this layer.

OsiModelLayer	getOsiModelLayer () const override

Public Member Functions inherited from pcpp::Layer
	~Layer () override

Layer *	getNextLayer () const

Layer *	getPrevLayer () const

ProtocolType	getProtocol () const

bool	isMemberOfProtocolFamily (ProtocolTypeFamily protocolTypeFamily) const

uint8_t *	getData () const

size_t	getDataLen () const

uint8_t *	getLayerPayload () const

size_t	getLayerPayloadSize () const

bool	isAllocatedToPacket () const

void	copyData (uint8_t *toArr) const
	Copy the raw data of this layer to another array. More...

size_t	copyData (uint8_t *dest, size_t destSize) const
	Copy the raw data of this layer to another array, with a specified maximum size. More...

void	serialize (ISerializer &serializer) const

uint8_t *	getDataPtr (size_t offset=0) const override

virtual size_t	getHeaderLen () const =0

virtual void	computeCalculateFields ()=0
	Each layer can compute field values automatically using this method. This is an abstract method.

virtual std::string	toString () const =0

Static Public Member Functions
static bool	isGvcpPort (uint16_t port)

static GvcpLayer *	parseGvcpLayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

Protected Member Functions
void	serializeLayer (ObjectScope &serializer) const override

void	initLayer (size_t dataLen)

Protected Member Functions inherited from pcpp::Layer
Packet *	getAttachedPacket ()
	Get a pointer to the Packet this layer is attached to (if any). More...

Packet const *	getAttachedPacket () const
	Get a pointer to the Packet this layer is attached to (if any). More...

void	allocData (size_t dataLen, bool zeroInit=true)
	Requests the layer to allocate a new data buffer of the specified length. More...

template<typename T , typename... Args>
Layer *	constructNextLayer (uint8_t *data, size_t dataLen, Args &&... extraArgs)
	Construct the next layer in the protocol stack. No validation is performed on the data. More...

template<typename T , typename... Args>
Layer *	constructNextLayer (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename TFactory , typename... Args>
Layer *	constructNextLayerFromFactory (TFactory factoryFn, uint8_t *data, size_t dataLen, Args &&... extraArgs)
	Construct the next layer in the protocol stack using a factory functor. More...

template<typename TFactory , typename... Args>
Layer *	constructNextLayerFromFactory (TFactory factoryFn, uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)
	Construct the next layer in the protocol stack using a factory functor. More...

template<typename T , typename... Args>
Layer *	tryConstructNextLayer (uint8_t *data, size_t dataLen, Args &&... extraArgs)

template<typename T , typename... Args>
Layer *	tryConstructNextLayer (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename T , typename TFallback , typename... Args>
Layer *	tryConstructNextLayerWithFallback (uint8_t *data, size_t dataLen, Args &&... extraArgs)
	Try to construct the next layer in the protocol stack with a fallback option. More...

template<typename T , typename TFallback , typename... Args>
Layer *	tryConstructNextLayerWithFallback (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename TFallback , typename TFactory , typename... Args>
Layer *	tryConstructNextLayerFromFactoryWithFallback (TFactory factoryFn, uint8_t *data, size_t dataLen, Args &&... extraArgs)
	Try to construct the next layer in the protocol stack using a factory functor with a fallback option. More...

template<typename TFallback , typename TFactory , typename... Args>
Layer *	tryConstructNextLayerFromFactoryWithFallback (TFactory factoryFn, uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)
	Try to construct the next layer in the protocol stack using a factory functor with a fallback option. More...

Additional Inherited Members
Static Protected Member Functions inherited from pcpp::Layer
template<typename T >
static bool	canReinterpretAs (const uint8_t *data, size_t dataLen)
	Check if the data is large enough to reinterpret as a type. More...

Detailed Description

An abstract class representing the GigE Vision Control Protocol (GVCP). The class is implemented according to the GigE Vision specification 2.0. A GVCP layer holds the GVCP header, followed by the message fields that its class knows how to parse. parseNextLayer() puts the rest of the message, if any, in a PayloadLayer

See also: https://en.wikipedia.org/wiki/GigE_Vision

Note: The class cannot be instantiated directly, use GvcpRequestLayer, GvcpAcknowledgeLayer or their derived classes

Member Enumeration Documentation

◆ GvcpCommand

enum pcpp::GvcpLayer::GvcpCommand : uint16_t

strong

GVCP command defines the command values and the corresponding acknowledge values. See more in the spec "18 Command and Acknowledge Values"

Enumerator
DiscoveredCmd	Discovery command (Discovery Protocol Control)
DiscoveredAck	Discovery acknowledge (Discovery Protocol Control)
ForceIpCmd	Force IP command (Discovery Protocol Control)
ForceIpAck	Force IP acknowledge (Discovery Protocol Control)
PacketResendCmd	Packet resend command (Streaming Protocol Control)
PacketResendAck	Packet resend acknowledge (Streaming Protocol Control). The resent packet must be on the stream channel.
ReadRegCmd	Read register command (Device Memory Access)
ReadRegAck	Read register acknowledge (Device Memory Access)
WriteRegCmd	Write register command (Device Memory Access)
WriteRegAck	Write register acknowledge (Device Memory Access)
ReadMemCmd	Read memory command (Device Memory Access)
ReadMemAck	Read memory acknowledge (Device Memory Access)
WriteMemCmd	Write memory command (Device Memory Access)
WriteMemAck	Write memory acknowledge (Device Memory Access)
PendingAck	Pending acknowledge (Device Memory Access)
EventCmd	Event command (Asynchronous Events)
EventAck	Event acknowledge (Asynchronous Events)
EventDataCmd	Event data command (Asynchronous Events)
EventDataAck	Event data acknowledge (Asynchronous Events)
ActionCmd	Action command (Miscellaneous)
ActionAck	Action acknowledge (Miscellaneous)
Unknown	Unknown command.

Member Function Documentation

◆ getCommand()

virtual GvcpCommand pcpp::GvcpLayer::getCommand ( ) const

pure virtual

Returns: The command (or acknowledge) value of this message, GvcpCommand::Unknown if the value isn't defined by the spec

Implemented in pcpp::GvcpAcknowledgeLayer, and pcpp::GvcpRequestLayer.

◆ getDataSize()

virtual uint16_t pcpp::GvcpLayer::getDataSize ( ) const

pure virtual

Returns: The data size field from the header, meaning the size of the message without the GVCP header

Implemented in pcpp::GvcpAcknowledgeLayer, and pcpp::GvcpRequestLayer.

◆ getOsiModelLayer()

OsiModelLayer pcpp::GvcpLayer::getOsiModelLayer ( ) const

inlineoverridevirtual

Returns: The OSI Model layer this protocol belongs to

Implements pcpp::Layer.

◆ initLayer()

void pcpp::GvcpLayer::initLayer ( size_t dataLen )

protected

Allocate zeroed data for a new layer and set the protocol

Parameters

[in] dataLen The size of the data to allocate in bytes

◆ isGvcpPort()

static bool pcpp::GvcpLayer::isGvcpPort ( uint16_t port )

inlinestatic

A static method that checks whether the port is considered as GVCP

Parameters

[in] port The port number to be checked

Returns: True if the port is the GVCP port (3956), false otherwise

◆ parseGvcpLayer()

static GvcpLayer* pcpp::GvcpLayer::parseGvcpLayer	(	uint8_t *	data,
		size_t	dataLen,
		Layer *	prevLayer,
		Packet *	packet
	)

static

A static method that parses the raw data and creates the matching GVCP layer. If the data begins with the GVCP magic number, the method creates a request layer, otherwise an acknowledge layer. For Discovery and Force IP messages, the method creates their specific layers, unless the data is too short for the fields of these messages

Parameters

[in]	data	A pointer to the raw data
[in]	dataLen	Size of the data in bytes
[in]	prevLayer	A pointer to the previous layer
[in]	packet	A pointer to the Packet instance where layer will be stored in

Returns: A pointer to the newly created GVCP layer, or nullptr if the data isn't a valid GVCP message

◆ serializeLayer()

void pcpp::GvcpLayer::serializeLayer ( ObjectScope & serializer ) const

overrideprotectedvirtual

Serializes the layer's data into a provided serializer object. This is used for generating serialized representations (like JSON) of the packet layers. This method should be overridden by derived layers to provide specific serialization logic.

Parameters

[in] serializer The object scope serializer to which the layer details should be written.

Reimplemented from pcpp::Layer.

Reimplemented in pcpp::GvcpForceIpRequestLayer, pcpp::GvcpDiscoveryAcknowledgeLayer, pcpp::GvcpDiscoveryRequestLayer, pcpp::GvcpAcknowledgeLayer, and pcpp::GvcpRequestLayer.
