#include <GvcpLayer.h>

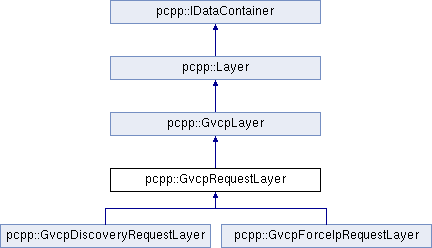

Inheritance diagram for pcpp::GvcpRequestLayer:

Classes
struct	gvcp_request_header

struct	SerializedFields

Public Member Functions
	GvcpRequestLayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

	GvcpRequestLayer (GvcpCommand command, GvcpFlag flag=0, uint16_t requestId=1)

GvcpFlag	getFlag () const

void	setFlag (GvcpFlag flag)

bool	hasAcknowledgeFlag () const

uint16_t	getRequestId () const

void	setRequestId (uint16_t requestId)

GvcpCommand	getCommand () const override

uint16_t	getDataSize () const override

size_t	getHeaderLen () const override

void	computeCalculateFields () override
	Calculate the data size field in the header according to the size of the data that follows the header.

std::string	toString () const override

Public Member Functions inherited from pcpp::GvcpLayer
void	parseNextLayer () override
	Creates a PayloadLayer from the rest of the message, if there is data after this layer.

OsiModelLayer	getOsiModelLayer () const override

Public Member Functions inherited from pcpp::Layer
	~Layer () override

Layer *	getNextLayer () const

Layer *	getPrevLayer () const

ProtocolType	getProtocol () const

bool	isMemberOfProtocolFamily (ProtocolTypeFamily protocolTypeFamily) const

uint8_t *	getData () const

size_t	getDataLen () const

uint8_t *	getLayerPayload () const

size_t	getLayerPayloadSize () const

bool	isAllocatedToPacket () const

void	copyData (uint8_t *toArr) const
	Copy the raw data of this layer to another array. More...

size_t	copyData (uint8_t *dest, size_t destSize) const
	Copy the raw data of this layer to another array, with a specified maximum size. More...

void	serialize (ISerializer &serializer) const

uint8_t *	getDataPtr (size_t offset=0) const override

Static Public Member Functions
static bool	isDataValid (const uint8_t *data, size_t dataLen)

Static Public Member Functions inherited from pcpp::GvcpLayer
static bool	isGvcpPort (uint16_t port)

static GvcpLayer *	parseGvcpLayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

Protected Member Functions
void	serializeLayer (ObjectScope &serializer) const override

	GvcpRequestLayer (GvcpCommand command, GvcpFlag flag, uint16_t requestId, size_t bodyLen)

Protected Member Functions inherited from pcpp::GvcpLayer
void	initLayer (size_t dataLen)

Protected Member Functions inherited from pcpp::Layer
Packet *	getAttachedPacket ()
	Get a pointer to the Packet this layer is attached to (if any). More...

Packet const *	getAttachedPacket () const
	Get a pointer to the Packet this layer is attached to (if any). More...

void	allocData (size_t dataLen, bool zeroInit=true)
	Requests the layer to allocate a new data buffer of the specified length. More...

template<typename T , typename... Args>
Layer *	constructNextLayer (uint8_t *data, size_t dataLen, Args &&... extraArgs)
	Construct the next layer in the protocol stack. No validation is performed on the data. More...

template<typename T , typename... Args>
Layer *	constructNextLayer (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename TFactory , typename... Args>
Layer *	constructNextLayerFromFactory (TFactory factoryFn, uint8_t *data, size_t dataLen, Args &&... extraArgs)
	Construct the next layer in the protocol stack using a factory functor. More...

template<typename TFactory , typename... Args>
Layer *	constructNextLayerFromFactory (TFactory factoryFn, uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)
	Construct the next layer in the protocol stack using a factory functor. More...

template<typename T , typename... Args>
Layer *	tryConstructNextLayer (uint8_t *data, size_t dataLen, Args &&... extraArgs)

template<typename T , typename... Args>
Layer *	tryConstructNextLayer (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename T , typename TFallback , typename... Args>
Layer *	tryConstructNextLayerWithFallback (uint8_t *data, size_t dataLen, Args &&... extraArgs)
	Try to construct the next layer in the protocol stack with a fallback option. More...

template<typename T , typename TFallback , typename... Args>
Layer *	tryConstructNextLayerWithFallback (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename TFallback , typename TFactory , typename... Args>
Layer *	tryConstructNextLayerFromFactoryWithFallback (TFactory factoryFn, uint8_t *data, size_t dataLen, Args &&... extraArgs)
	Try to construct the next layer in the protocol stack using a factory functor with a fallback option. More...

template<typename TFallback , typename TFactory , typename... Args>
Layer *	tryConstructNextLayerFromFactoryWithFallback (TFactory factoryFn, uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)
	Try to construct the next layer in the protocol stack using a factory functor with a fallback option. More...

Additional Inherited Members
Public Types inherited from pcpp::GvcpLayer
enum class	GvcpCommand : uint16_t { DiscoveredCmd = 0x0002 , DiscoveredAck = 0x0003 , ForceIpCmd = 0x0004 , ForceIpAck = 0x0005 , PacketResendCmd = 0x0040 , PacketResendAck = 0x0041 , ReadRegCmd = 0x0080 , ReadRegAck = 0x0081 , WriteRegCmd = 0x0082 , WriteRegAck = 0x0083 , ReadMemCmd = 0x0084 , ReadMemAck = 0x0085 , WriteMemCmd = 0x0086 , WriteMemAck = 0x0087 , PendingAck = 0x0089 , EventCmd = 0x00C0 , EventAck = 0x00C1 , EventDataCmd = 0x00C2 , EventDataAck = 0x00C3 , ActionCmd = 0x0100 , ActionAck = 0x0101 , Unknown = 0xFFFF }

Static Protected Member Functions inherited from pcpp::Layer
template<typename T >
static bool	canReinterpretAs (const uint8_t *data, size_t dataLen)
	Check if the data is large enough to reinterpret as a type. More...

Detailed Description

Represents a GVCP request (command) message. Commands which don't have a specific layer class are represented by this class

Constructor & Destructor Documentation

◆ GvcpRequestLayer() [1/3]

pcpp::GvcpRequestLayer::GvcpRequestLayer	(	uint8_t *	data,
		size_t	dataLen,
		Layer *	prevLayer,
		Packet *	packet
	)

inline

A constructor that creates the layer from an existing packet raw data

Parameters

[in]	data	A pointer to the raw data
[in]	dataLen	Size of the data in bytes
[in]	prevLayer	A pointer to the previous layer
[in]	packet	A pointer to the Packet instance where layer will be stored in

◆ GvcpRequestLayer() [2/3]

pcpp::GvcpRequestLayer::GvcpRequestLayer	(	GvcpCommand	command,
		GvcpFlag	flag = `0`,
		uint16_t	requestId = `1`
	)

inlineexplicit

A constructor that creates a new GVCP request which contains only the GVCP header. To add message data, add a PayloadLayer after this layer

Parameters

[in]	command	The command
[in]	flag	The flag, optional
[in]	requestId	The request ID, optional. The spec requires a non-zero value

Exceptions

std::invalid_argument if the command is an acknowledge value (an odd value)

◆ GvcpRequestLayer() [3/3]

pcpp::GvcpRequestLayer::GvcpRequestLayer	(	GvcpCommand	command,
		GvcpFlag	flag,
		uint16_t	requestId,
		size_t	bodyLen
	)

protected

A constructor that creates a new GVCP request with a message body of zeroed bytes after the header

Parameters

[in]	command	The command
[in]	flag	The flag
[in]	requestId	The request ID
[in]	bodyLen	The size of the message body in bytes

Exceptions

std::invalid_argument if the command is an acknowledge value (an odd value)

Member Function Documentation

◆ getCommand()

GvcpCommand pcpp::GvcpRequestLayer::getCommand ( ) const

overridevirtual

Returns: The command from the header, GvcpCommand::Unknown if the value isn't defined by the spec

Implements pcpp::GvcpLayer.

◆ getDataSize()

uint16_t pcpp::GvcpRequestLayer::getDataSize ( ) const

overridevirtual

Returns: The data size from the header

Implements pcpp::GvcpLayer.

◆ getFlag()

GvcpFlag pcpp::GvcpRequestLayer::getFlag ( ) const

Returns: The flag from the header

◆ getHeaderLen()

size_t pcpp::GvcpRequestLayer::getHeaderLen ( ) const

inlineoverridevirtual

Returns: The size of the GVCP request header

Implements pcpp::Layer.

Reimplemented in pcpp::GvcpForceIpRequestLayer.

◆ getRequestId()

uint16_t pcpp::GvcpRequestLayer::getRequestId ( ) const

Returns: The request ID from the header

◆ hasAcknowledgeFlag()

bool pcpp::GvcpRequestLayer::hasAcknowledgeFlag ( ) const

Returns: True if the acknowledge-required bit is set in the flag, false otherwise

◆ isDataValid()

static bool pcpp::GvcpRequestLayer::isDataValid	(	const uint8_t *	data,
		size_t	dataLen
	)

static

A static method that checks whether the data is a valid GVCP request. The data must be large enough to hold a GVCP request header and must begin with the GVCP magic number

Parameters

[in]	data	A pointer to the raw data
[in]	dataLen	Size of the data in bytes

Returns: True if the data is a valid GVCP request, false otherwise

◆ serializeLayer()

void pcpp::GvcpRequestLayer::serializeLayer ( ObjectScope & serializer ) const

overrideprotectedvirtual

Serializes the layer's data into a provided serializer object. This is used for generating serialized representations (like JSON) of the packet layers. This method should be overridden by derived layers to provide specific serialization logic.

Parameters

[in] serializer The object scope serializer to which the layer details should be written.

Reimplemented from pcpp::GvcpLayer.

Reimplemented in pcpp::GvcpForceIpRequestLayer, and pcpp::GvcpDiscoveryRequestLayer.

◆ setFlag()

void pcpp::GvcpRequestLayer::setFlag ( GvcpFlag flag )

Set the flag in the header

Parameters

[in] flag The flag to set

◆ setRequestId()

void pcpp::GvcpRequestLayer::setRequestId ( uint16_t requestId )

Set the request ID in the header

Parameters

[in] requestId The request ID to set

◆ toString()

std::string pcpp::GvcpRequestLayer::toString ( ) const

overridevirtual

Returns: A string representation of the layer most important data

Implements pcpp::Layer.
