Represents a Basic class for Diagnostic message (ACK/NACK) sent back to tester. More...

#include <DoIpLayer.h>

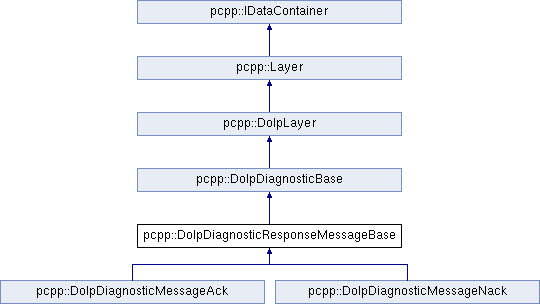

Inheritance diagram for pcpp::DoIpDiagnosticResponseMessageBase:

Public Member Functions
uint8_t	getResponseCode () const
	Gets the acknowledgment/nack code (1-byte). More...

void	setResponseCode (uint8_t code)
	Sets the acknowledgment/nack code (1-byte). More...

std::vector< uint8_t >	getPreviousMessage () const
	Gets the optional previously echoed diagnostic message. More...

bool	hasPreviousMessage () const
	Checks if a previous message is attached. More...

void	setPreviousMessage (const std::vector< uint8_t > &msg)
	Sets the previous echoed diagnostic message. More...

void	clearPreviousMessage ()
	Clears the previously stored diagnostic message.

Public Member Functions inherited from pcpp::DoIpDiagnosticBase
uint16_t	getSourceAddress () const
	Gets the source logical address of the message. More...

void	setSourceAddress (uint16_t sourceAddress)
	Sets the source logical address. More...

uint16_t	getTargetAddress () const
	Gets the target logical address of the message. More...

void	setTargetAddress (uint16_t targetAddress)
	Sets the target logical address. More...

virtual std::string	getSummary () const =0
	Returns a human-readable summary of the message content. More...

Public Member Functions inherited from pcpp::DoIpLayer
virtual DoIpPayloadTypes	getPayloadType () const =0

std::string	getPayloadTypeAsStr () const

DoIpProtocolVersion	getProtocolVersion () const

std::string	getProtocolVersionAsStr () const

void	setProtocolVersion (DoIpProtocolVersion version)

void	setProtocolVersion (uint8_t rawVersion)

uint8_t	getInvertProtocolVersion () const

void	setInvertProtocolVersion (uint8_t iVersion)

uint32_t	getPayloadLength () const

void	setPayloadLength (uint32_t length)

void	parseNextLayer () override
	parse UDS layer

size_t	getHeaderLen () const override

std::string	toString () const override

void	computeCalculateFields () override
	Each layer can compute field values automatically using this method. This is an abstract method.

OsiModelLayer	getOsiModelLayer () const override

Public Member Functions inherited from pcpp::Layer
	~Layer () override

Layer *	getNextLayer () const

Layer *	getPrevLayer () const

ProtocolType	getProtocol () const

bool	isMemberOfProtocolFamily (ProtocolTypeFamily protocolTypeFamily) const

uint8_t *	getData () const

size_t	getDataLen () const

uint8_t *	getLayerPayload () const

size_t	getLayerPayloadSize () const

bool	isAllocatedToPacket () const

void	copyData (uint8_t *toArr) const

uint8_t *	getDataPtr (size_t offset=0) const override

Static Public Member Functions
static bool	isDataLenValid (size_t dataLen)
	Checks if data length is valid. More...

Static Public Member Functions inherited from pcpp::DoIpLayer
static DoIpLayer *	parseDoIpLayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

static bool	isDoIpPort (uint16_t port)

static bool	isDataValid (uint8_t *data, size_t dataLen)

Additional Inherited Members
Protected Member Functions inherited from pcpp::Layer
template<typename T , typename... Args>
Layer *	constructNextLayer (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename T , typename TFallback , typename... Args>
Layer *	tryConstructNextLayerWithFallback (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

Static Protected Member Functions inherited from pcpp::Layer
template<typename T >
static bool	canReinterpretAs (const uint8_t *data, size_t dataLen)
	Check if the data is large enough to reinterpret as a type. More...

Detailed Description

Represents a Basic class for Diagnostic message (ACK/NACK) sent back to tester.

Member Function Documentation

◆ getPreviousMessage()

std::vector<uint8_t> pcpp::DoIpDiagnosticResponseMessageBase::getPreviousMessage ( ) const

Gets the optional previously echoed diagnostic message.

Returns: A vector containing the previously echoed diagnostic message.

◆ getResponseCode()

uint8_t pcpp::DoIpDiagnosticResponseMessageBase::getResponseCode ( ) const

Gets the acknowledgment/nack code (1-byte).

Returns: The acknowledgment/nack code.

◆ hasPreviousMessage()

bool pcpp::DoIpDiagnosticResponseMessageBase::hasPreviousMessage ( ) const

Checks if a previous message is attached.

Returns: true if a previous message is present, false otherwise.

◆ isDataLenValid()

static bool pcpp::DoIpDiagnosticResponseMessageBase::isDataLenValid ( size_t dataLen )

inlinestatic

Checks if data length is valid.

Parameters

[in] dataLen Length of the data buffer.

Returns: true if the data length is valid, false otherwise.

◆ setPreviousMessage()

void pcpp::DoIpDiagnosticResponseMessageBase::setPreviousMessage ( const std::vector< uint8_t > & msg )

Sets the previous echoed diagnostic message.

Parameters

[in] msg A vector containing the previously echoed diagnostic message.

◆ setResponseCode()

void pcpp::DoIpDiagnosticResponseMessageBase::setResponseCode ( uint8_t code )

Sets the acknowledgment/nack code (1-byte).

Parameters

[in] code The acknowledgment/nack code to set.
