Represents a DoIP Diagnostic Message sent between tester and ECU. This class includes source and target addresses. More...

#include <DoIpLayer.h>

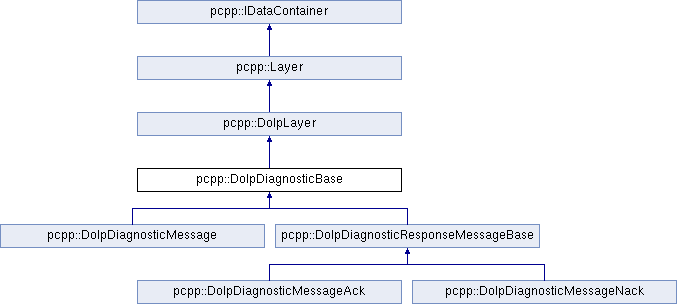

Inheritance diagram for pcpp::DoIpDiagnosticBase:

Classes
struct	common_diagnostic_header
	An internal structure representing the common diagnostic header. More...

Public Member Functions
uint16_t	getSourceAddress () const
	Gets the source logical address of the message. More...

void	setSourceAddress (uint16_t sourceAddress)
	Sets the source logical address. More...

uint16_t	getTargetAddress () const
	Gets the target logical address of the message. More...

void	setTargetAddress (uint16_t targetAddress)
	Sets the target logical address. More...

virtual std::string	getSummary () const =0
	Returns a human-readable summary of the message content. More...

Public Member Functions inherited from pcpp::DoIpLayer
virtual DoIpPayloadTypes	getPayloadType () const =0

std::string	getPayloadTypeAsStr () const

DoIpProtocolVersion	getProtocolVersion () const

std::string	getProtocolVersionAsStr () const

void	setProtocolVersion (DoIpProtocolVersion version)

void	setProtocolVersion (uint8_t rawVersion)

uint8_t	getInvertProtocolVersion () const

void	setInvertProtocolVersion (uint8_t iVersion)

uint32_t	getPayloadLength () const

void	setPayloadLength (uint32_t length)

void	parseNextLayer () override
	parse UDS layer

size_t	getHeaderLen () const override

std::string	toString () const override

void	computeCalculateFields () override
	Each layer can compute field values automatically using this method. This is an abstract method.

OsiModelLayer	getOsiModelLayer () const override

Public Member Functions inherited from pcpp::Layer
	~Layer () override

Layer *	getNextLayer () const

Layer *	getPrevLayer () const

ProtocolType	getProtocol () const

bool	isMemberOfProtocolFamily (ProtocolTypeFamily protocolTypeFamily) const

uint8_t *	getData () const

size_t	getDataLen () const

uint8_t *	getLayerPayload () const

size_t	getLayerPayloadSize () const

bool	isAllocatedToPacket () const

void	copyData (uint8_t *toArr) const

uint8_t *	getDataPtr (size_t offset=0) const override

Additional Inherited Members
Static Public Member Functions inherited from pcpp::DoIpLayer
static DoIpLayer *	parseDoIpLayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

static bool	isDoIpPort (uint16_t port)

static bool	isDataValid (uint8_t *data, size_t dataLen)

Protected Member Functions inherited from pcpp::Layer
template<typename T , typename... Args>
Layer *	constructNextLayer (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename T , typename TFallback , typename... Args>
Layer *	tryConstructNextLayerWithFallback (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

Static Protected Member Functions inherited from pcpp::Layer
template<typename T >
static bool	canReinterpretAs (const uint8_t *data, size_t dataLen)
	Check if the data is large enough to reinterpret as a type. More...

Detailed Description

Represents a DoIP Diagnostic Message sent between tester and ECU. This class includes source and target addresses.

Member Function Documentation

◆ getSourceAddress()

uint16_t pcpp::DoIpDiagnosticBase::getSourceAddress ( ) const

Gets the source logical address of the message.

Returns: 16-bit address of the source ECU.

◆ getSummary()

virtual std::string pcpp::DoIpDiagnosticBase::getSummary ( ) const

pure virtual

Returns a human-readable summary of the message content.

Returns: A string summarizing the diagnostic message.

Implemented in pcpp::DoIpDiagnosticMessageNack, pcpp::DoIpDiagnosticMessageAck, and pcpp::DoIpDiagnosticMessage.

◆ getTargetAddress()

uint16_t pcpp::DoIpDiagnosticBase::getTargetAddress ( ) const

Gets the target logical address of the message.

Returns: 16-bit address of the destination ECU.

◆ setSourceAddress()

void pcpp::DoIpDiagnosticBase::setSourceAddress ( uint16_t sourceAddress )

Sets the source logical address.

Parameters

[in] sourceAddress 16-bit source address.

◆ setTargetAddress()

void pcpp::DoIpDiagnosticBase::setTargetAddress ( uint16_t targetAddress )

Sets the target logical address.

Parameters

[in] targetAddress 16-bit target address.
