#include <StpLayer.h>

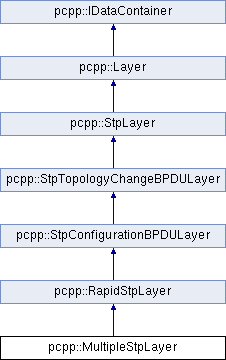

Inheritance diagram for pcpp::MultipleStpLayer:

Public Member Functions
	MultipleStpLayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

	MultipleStpLayer ()

mstp_conf_bpdu *	getMstpHeader () const

uint16_t	getVersion3Len () const

void	setVersion3Len (uint16_t value)

uint8_t	getMstConfigurationFormatSelector () const

void	setMstConfigurationFormatSelector (uint8_t value)

std::string	getMstConfigurationName () const

void	setMstConfigurationName (const std::string &value)

uint16_t	getMstConfigRevision () const

void	setMstConfigRevision (uint16_t value)

uint8_t *	getMstConfigDigest () const

void	setMstConfigDigest (const uint8_t *value, uint8_t len)

uint32_t	getCISTIrpc () const

void	setCISTIrpc (uint32_t value)

uint64_t	getCISTBridgeId () const

void	setCISTBridgeId (uint64_t value)

uint16_t	getCISTBridgePriority () const

void	setCISTBridgePriority (uint16_t value)

uint16_t	getCISTBridgeSystemIDExtension () const

void	setCISTBridgeSystemIDExtension (uint16_t value)

pcpp::MacAddress	getCISTBridgeSystemID () const

void	setCISTBridgeSystemID (const pcpp::MacAddress &value)

uint8_t	getRemainingHopCount () const

void	setRemainingHopCount (uint8_t value)

uint8_t	getNumberOfMSTIConfMessages () const

msti_conf_msg *	getMstiConfMessages () const

void	parseNextLayer () override
	Parses next layer.

std::string	toString () const override

Public Member Functions inherited from pcpp::RapidStpLayer
	RapidStpLayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

	RapidStpLayer ()

rstp_conf_bpdu *	getRstpConfHeader () const

uint8_t	getVersion1Len () const

void	setVersion1Len (uint8_t value)

size_t	getHeaderLen () const override

Public Member Functions inherited from pcpp::StpConfigurationBPDULayer
	StpConfigurationBPDULayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

	StpConfigurationBPDULayer ()

stp_conf_bpdu *	getStpConfHeader () const

uint8_t	getFlag () const

void	setFlag (uint8_t value)

uint64_t	getRootId () const

void	setRootId (uint64_t value)

uint16_t	getRootPriority () const

void	setRootPriority (uint16_t value)

uint16_t	getRootSystemIDExtension () const

void	setRootSystemIDExtension (uint16_t value)

pcpp::MacAddress	getRootSystemID () const

void	setRootSystemID (const pcpp::MacAddress &value)

uint32_t	getPathCost () const

void	setPathCost (uint32_t value)

uint64_t	getBridgeId () const

void	setBridgeId (uint64_t value)

uint16_t	getBridgePriority () const

void	setBridgePriority (uint16_t value)

uint16_t	getBridgeSystemIDExtension () const

void	setBridgeSystemIDExtension (uint16_t value)

pcpp::MacAddress	getBridgeSystemID () const

void	setBridgeSystemID (const pcpp::MacAddress &value)

uint16_t	getPortId () const

void	setPortId (uint16_t value)

double	getMessageAge () const

void	setMessageAge (double value)

double	getMaximumAge () const

void	setMaximumAge (double value)

double	getTransmissionInterval () const

void	setTransmissionInterval (double value)

double	getForwardDelay () const

void	setForwardDelay (double value)

Public Member Functions inherited from pcpp::StpTopologyChangeBPDULayer
	StpTopologyChangeBPDULayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

	StpTopologyChangeBPDULayer ()

stp_tcn_bpdu *	getStpTcnHeader ()

Public Member Functions inherited from pcpp::StpLayer
stp_header *	getStpHeader () const

uint16_t	getProtoId () const

void	setProtoId (uint16_t value)

uint8_t	getVersion () const

void	setVersion (uint8_t value)

uint8_t	getType () const

void	setType (uint8_t value)

void	computeCalculateFields () override
	Does nothing for this layer.

OsiModelLayer	getOsiModelLayer () const override

Public Member Functions inherited from pcpp::Layer
	~Layer () override

Layer *	getNextLayer () const

Layer *	getPrevLayer () const

ProtocolType	getProtocol () const

bool	isMemberOfProtocolFamily (ProtocolTypeFamily protocolTypeFamily) const

uint8_t *	getData () const

size_t	getDataLen () const

uint8_t *	getLayerPayload () const

size_t	getLayerPayloadSize () const

bool	isAllocatedToPacket () const

void	copyData (uint8_t *toArr) const

uint8_t *	getDataPtr (size_t offset=0) const override

Static Public Member Functions
static bool	isDataValid (const uint8_t *data, size_t dataLen)

Static Public Member Functions inherited from pcpp::RapidStpLayer
static bool	isDataValid (const uint8_t *data, size_t dataLen)

Static Public Member Functions inherited from pcpp::StpConfigurationBPDULayer
static bool	isDataValid (const uint8_t *data, size_t dataLen)

Static Public Member Functions inherited from pcpp::StpTopologyChangeBPDULayer
static bool	isDataValid (const uint8_t *data, size_t dataLen)

Static Public Member Functions inherited from pcpp::StpLayer
static bool	isDataValid (const uint8_t *data, size_t dataLen)

static StpLayer *	parseStpLayer (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

Additional Inherited Members
Static Public Attributes inherited from pcpp::StpLayer
static pcpp::MacAddress	StpMulticastDstMAC
	STP protocol uses "01:80:C2:00:00:00" multicast address as destination MAC.

static pcpp::MacAddress	StpUplinkFastMulticastDstMAC
	STP Uplink Fast protocol uses "01:00:0C:CD:CD:CD" as destination MAC.

Protected Member Functions inherited from pcpp::Layer
template<typename T , typename... Args>
Layer *	constructNextLayer (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename T , typename TFallback , typename... Args>
Layer *	tryConstructNextLayerWithFallback (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

Static Protected Member Functions inherited from pcpp::Layer
template<typename T >
static bool	canReinterpretAs (const uint8_t *data, size_t dataLen)
	Check if the data is large enough to reinterpret as a type. More...

Detailed Description

Represents Multiple Spanning Tree Protocol (MSTP). It has limited capabilities (no crafting / limited editing) over MSTI configuration

Constructor & Destructor Documentation

◆ MultipleStpLayer() [1/2]

pcpp::MultipleStpLayer::MultipleStpLayer	(	uint8_t *	data,
		size_t	dataLen,
		Layer *	prevLayer,
		Packet *	packet
	)

inline

A constructor that creates the layer from an existing packet raw data

Parameters

[in]	data	A pointer to the raw data
[in]	dataLen	Size of the data in bytes
[in]	prevLayer	A pointer to the previous layer
[in]	packet	A pointer to the Packet instance where layer will be stored in

◆ MultipleStpLayer() [2/2]

pcpp::MultipleStpLayer::MultipleStpLayer ( )

Empty c'tor to create a new Multiple STP layer. Initializes the protocol identifier, version and STP type fields with correct values

Member Function Documentation

◆ getCISTBridgeId()

uint64_t pcpp::MultipleStpLayer::getCISTBridgeId ( ) const

Returns CIST bridge identifier

Returns: Value of the bridge identifier

◆ getCISTBridgePriority()

uint16_t pcpp::MultipleStpLayer::getCISTBridgePriority ( ) const

Returns the priority of CIST bridge

Returns: Priority of CIST bridge

◆ getCISTBridgeSystemID()

pcpp::MacAddress pcpp::MultipleStpLayer::getCISTBridgeSystemID ( ) const

inline

Returns the system identifier of CIST bridge

Returns: System identifier of CIST bridge

◆ getCISTBridgeSystemIDExtension()

uint16_t pcpp::MultipleStpLayer::getCISTBridgeSystemIDExtension ( ) const

Returns the system identifier extension of CIST bridge

Returns: System extension of CIST bridge

◆ getCISTIrpc()

uint32_t pcpp::MultipleStpLayer::getCISTIrpc ( ) const

Returns CIST internal root path cost

Returns: Value of the internal root path cost

◆ getMstConfigDigest()

uint8_t* pcpp::MultipleStpLayer::getMstConfigDigest ( ) const

inline

Returns the pointer to configuration message digest. The field itself always 16 bytes long.

Returns: A pointer to configuration digest

◆ getMstConfigRevision()

uint16_t pcpp::MultipleStpLayer::getMstConfigRevision ( ) const

Returns the revision of configuration ID

Returns: Revision of configuration ID

◆ getMstConfigurationFormatSelector()

uint8_t pcpp::MultipleStpLayer::getMstConfigurationFormatSelector ( ) const

inline

Returns the configuration ID format selector

Returns: Configuration ID of format selector

◆ getMstConfigurationName()

std::string pcpp::MultipleStpLayer::getMstConfigurationName ( ) const

Returns the pointer to configuration name field

Returns: Configuration name

◆ getMstiConfMessages()

msti_conf_msg* pcpp::MultipleStpLayer::getMstiConfMessages ( ) const

Returns a reference to MSTI configuration messages. An MSTP packet can contain between 0 to 64 MSTI messages. The number of messages can be obtained by using getNumberOfMSTIConfMessages()

Returns: An array pointer to MSTI configuration messages. Returns nullptr if there is no MSTI message.

◆ getMstpHeader()

mstp_conf_bpdu* pcpp::MultipleStpLayer::getMstpHeader ( ) const

inline

Get a pointer to Multiple STP header

Returns: A pointer to Multiple STP header

◆ getNumberOfMSTIConfMessages()

uint8_t pcpp::MultipleStpLayer::getNumberOfMSTIConfMessages ( ) const

inline

Returns the total number of MSTI configuration messages

Returns: Number of MSTI configuration messages. Can be between 0 and 64.

◆ getRemainingHopCount()

uint8_t pcpp::MultipleStpLayer::getRemainingHopCount ( ) const

inline

Returns the remaining hop count

Returns: Value of remaining hop count

◆ getVersion3Len()

uint16_t pcpp::MultipleStpLayer::getVersion3Len ( ) const

Returns: Length of version3 field

◆ isDataValid()

static bool pcpp::MultipleStpLayer::isDataValid	(	const uint8_t *	data,
		size_t	dataLen
	)

inlinestatic

A static method that validates the input data

Parameters

[in]	data	The pointer to the beginning of a byte stream of an Multiple STP packet
[in]	dataLen	The length of the byte stream

Returns: True if the data is valid and can represent an Spanning Tree packet

◆ setCISTBridgeId()

void pcpp::MultipleStpLayer::setCISTBridgeId ( uint64_t value )

Sets CIST bridge identifier

Parameters

[in] value Value of the bridge identifier

◆ setCISTBridgePriority()

void pcpp::MultipleStpLayer::setCISTBridgePriority ( uint16_t value )

Sets the priority of CIST bridge

Parameters

[in] value Priority of CIST bridge

◆ setCISTBridgeSystemID()

void pcpp::MultipleStpLayer::setCISTBridgeSystemID ( const pcpp::MacAddress & value )

Sets the system identifier of CIST bridge

Parameters

[in] value System identifier of CIST bridge

◆ setCISTBridgeSystemIDExtension()

void pcpp::MultipleStpLayer::setCISTBridgeSystemIDExtension ( uint16_t value )

Sets the system identifier extension of CIST bridge

Parameters

[in] value System extension of CIST bridge

◆ setCISTIrpc()

void pcpp::MultipleStpLayer::setCISTIrpc ( uint32_t value )

Sets CIST internal root path cost

Parameters

[in] value Value of the internal root path cost

◆ setMstConfigDigest()

void pcpp::MultipleStpLayer::setMstConfigDigest	(	const uint8_t *	value,
		uint8_t	len
	)

Sets the pointer to configuration message digest. The field itself always 16 bytes long.

Parameters

[in]	value	Pointer to digest
[in]	len	Length of the digest, should be less than 16. If longer first 16 bytes are used

◆ setMstConfigRevision()

void pcpp::MultipleStpLayer::setMstConfigRevision ( uint16_t value )

Sets the revision of configuration ID

Parameters

[in] value Revision of configuration ID

◆ setMstConfigurationFormatSelector()

void pcpp::MultipleStpLayer::setMstConfigurationFormatSelector ( uint8_t value )

inline

Sets the configuration ID format selector

Parameters

[in] value Configuration ID of format selector

◆ setMstConfigurationName()

void pcpp::MultipleStpLayer::setMstConfigurationName ( const std::string & value )

Sets the configuration name field

Parameters

[in] value Configuration name. Length should be less than 32, if longer value provided first 32 characters are used

◆ setRemainingHopCount()

void pcpp::MultipleStpLayer::setRemainingHopCount ( uint8_t value )

inline

Returns the remaining hop count

Parameters

[in] value Value of remaining hop count

◆ setVersion3Len()

void pcpp::MultipleStpLayer::setVersion3Len ( uint16_t value )

Sets the length of version3 field

Parameters

[in] value Length of version3 field

◆ toString()

std::string pcpp::MultipleStpLayer::toString ( ) const

inlineoverridevirtual

Returns: Returns the protocol info as readable string

Reimplemented from pcpp::RapidStpLayer.

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MultipleStpLayer() [1/2]

◆ MultipleStpLayer() [2/2]

Member Function Documentation

◆ getCISTBridgeId()

◆ getCISTBridgePriority()

◆ getCISTBridgeSystemID()

◆ getCISTBridgeSystemIDExtension()

◆ getCISTIrpc()

◆ getMstConfigDigest()

◆ getMstConfigRevision()

◆ getMstConfigurationFormatSelector()

◆ getMstConfigurationName()

◆ getMstiConfMessages()

◆ getMstpHeader()

◆ getNumberOfMSTIConfMessages()

◆ getRemainingHopCount()

◆ getVersion3Len()

◆ isDataValid()

◆ setCISTBridgeId()

◆ setCISTBridgePriority()

◆ setCISTBridgeSystemID()

◆ setCISTBridgeSystemIDExtension()

◆ setCISTIrpc()

◆ setMstConfigDigest()

◆ setMstConfigRevision()

◆ setMstConfigurationFormatSelector()

◆ setMstConfigurationName()

◆ setRemainingHopCount()

◆ setVersion3Len()

◆ toString()
