#include <LdapLayer.h>

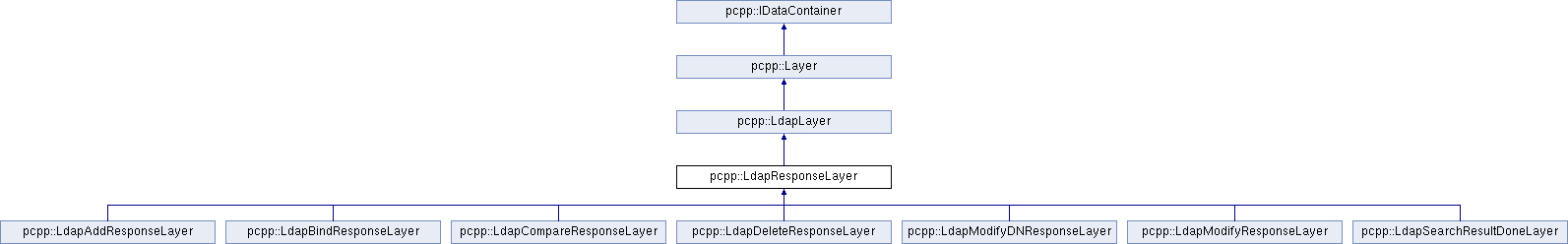

Inheritance diagram for pcpp::LdapResponseLayer:

Public Member Functions
LdapResultCode	getResultCode () const

std::string	getMatchedDN () const

std::string	getDiagnosticMessage () const

std::vector< std::string >	getReferral () const

Public Member Functions inherited from pcpp::LdapLayer
	LdapLayer (uint16_t messageId, LdapOperationType operationType, const std::vector< Asn1Record * > &messageRecords, const std::vector< LdapControl > &controls=std::vector< LdapControl >())

Asn1SequenceRecord *	getRootAsn1Record () const

Asn1ConstructedRecord *	getLdapOperationAsn1Record () const

uint16_t	getMessageID () const

std::vector< LdapControl >	getControls () const

virtual LdapOperationType	getLdapOperationType () const

template<typename Method , typename ResultType >
bool	tryGet (Method method, ResultType &result)

void	parseNextLayer () override
	Tries to identify more LDAP messages in this packet if exist.

size_t	getHeaderLen () const override

void	computeCalculateFields () override
	Each layer can compute field values automatically using this method. This is an abstract method.

OsiModelLayer	getOsiModelLayer () const override

std::string	toString () const override

Public Member Functions inherited from pcpp::Layer
	~Layer () override

Layer *	getNextLayer () const

Layer *	getPrevLayer () const

ProtocolType	getProtocol () const

bool	isMemberOfProtocolFamily (ProtocolTypeFamily protocolTypeFamily) const

uint8_t *	getData () const

size_t	getDataLen () const

uint8_t *	getLayerPayload () const

size_t	getLayerPayloadSize () const

bool	isAllocatedToPacket () const

void	copyData (uint8_t *toArr) const

uint8_t *	getDataPtr (size_t offset=0) const override

Additional Inherited Members
Static Public Member Functions inherited from pcpp::LdapLayer
static bool	isLdapPort (uint16_t port)

static LdapLayer *	parseLdapMessage (uint8_t data, size_t dataLen, Layer prevLayer, Packet *packet)

Protected Member Functions inherited from pcpp::Layer
template<typename T , typename... Args>
Layer *	constructNextLayer (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

template<typename T , typename TFallback , typename... Args>
Layer *	tryConstructNextLayerWithFallback (uint8_t data, size_t dataLen, Packet packet, Args &&... extraArgs)

Static Protected Member Functions inherited from pcpp::Layer
template<typename T >
static bool	canReinterpretAs (const uint8_t *data, size_t dataLen)
	Check if the data is large enough to reinterpret as a type. More...

Detailed Description

An abstract class for representing an LDAP response message. It's the parent class for all response message layers

Member Function Documentation

◆ getDiagnosticMessage()

std::string pcpp::LdapResponseLayer::getDiagnosticMessage ( ) const

Returns: An optional string that can provide additional information about the processing that was performed

◆ getMatchedDN()

std::string pcpp::LdapResponseLayer::getMatchedDN ( ) const

Returns: An optional distinguished name (DN) that may be included in the response to a request targeting an entry that does not exist

◆ getReferral()

std::vector<std::string> pcpp::LdapResponseLayer::getReferral ( ) const

Returns: An optional list of one or more URIs that the client may use to re-try the operation somewhere else. If referral doesn't exist on the message, and empty vector is returned

◆ getResultCode()

LdapResultCode pcpp::LdapResponseLayer::getResultCode ( ) const

Returns: LDAP result code
