pcpp::WireGuardHandshakeResponseLayer::SerializedFields Struct Reference

#include <WireGuardLayer.h>

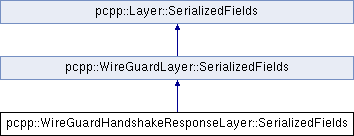

Inheritance diagram for pcpp::WireGuardHandshakeResponseLayer::SerializedFields:

Static Public Member Functions
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::WireGuardLayer::SerializedFields
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::Layer::SerializedFields
static std::vector< FieldDescriptor >	all ()

Static Public Attributes
static const FieldDescriptor	SenderIndex
	Field descriptor for the sender index, written as a hex value.
static const FieldDescriptor	ReceiverIndex
	Field descriptor for the receiver index, written as a hex value.
static const FieldDescriptor	ResponderEphemeral
	Field descriptor for the 32-byte responder ephemeral public key, written as a hex string with no separators.
static const FieldDescriptor	EncryptedEmpty
	Field descriptor for the 16-byte encrypted empty field, written as a hex string with no separators.
static const FieldDescriptor	Mac1
	Field descriptor for the 16-byte MAC1, written as a hex string with no separators.
static const FieldDescriptor	Mac2
	Field descriptor for the 16-byte MAC2, written as a hex string with no separators.
Static Public Attributes inherited from pcpp::WireGuardLayer::SerializedFields
static const FieldDescriptor	MessageType
	Field descriptor for the raw message type value, written as a number.
static const FieldDescriptor	MessageTypeName
	Field descriptor for the message type name, written as a string.
static constexpr uint16_t	MaxID = Layer::SerializedFields::MaxID + 2
	Maximum field ID used by WireGuardLayer.
Static Public Attributes inherited from pcpp::Layer::SerializedFields
static const FieldDescriptor	ProtocolName
	Field descriptor for the layer protocol name.
static const FieldDescriptor	ProtocolId
	Field descriptor for the layer protocol ID.
static const FieldDescriptor	Length
	Field descriptor for the layer length.
static constexpr uint16_t	MaxID = 1
	Maximum field ID used by the layer.

Detailed Description

Fields written by WireGuardHandshakeResponseLayer's serializeLayer(), in addition to WireGuardLayer::SerializedFields.

Member Function Documentation

all()

static std::vector<FieldDescriptor> pcpp::WireGuardHandshakeResponseLayer::SerializedFields::all ( )

inlinestatic

Returns

All field descriptors for WireGuardHandshakeResponseLayer
