pcpp::VrrpLayer::SerializedFields Struct Reference

#include <VrrpLayer.h>

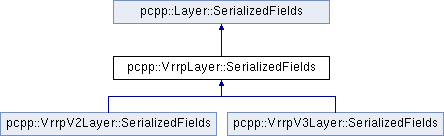

Inheritance diagram for pcpp::VrrpLayer::SerializedFields:

Static Public Member Functions
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::Layer::SerializedFields
static std::vector< FieldDescriptor >	all ()

Static Public Attributes
static const FieldDescriptor	Type
	Field descriptor for the VRRP message type, written as a string.
static const FieldDescriptor	VirtualRouterID
	Field descriptor for the virtual router ID (VRID), written as a number.
static const FieldDescriptor	Priority
	Field descriptor for the priority category, written as a string: "Default", "Stop", "Owner" or "Other".
static const FieldDescriptor	PriorityValue
	Field descriptor for the raw priority value, written as a number.
static const FieldDescriptor	Checksum
	Field descriptor for the VRRP checksum, written as a hex value.
static const FieldDescriptor	IPAddresses
	Field descriptor for the array of virtual router IP addresses.
static const FieldDescriptor	IPAddress
	Field descriptor for a single entry of the IPAddresses array, written as an IP address string.
static constexpr uint16_t	MaxID = Layer::SerializedFields::MaxID + 5
	Maximum field ID used by the layer.
Static Public Attributes inherited from pcpp::Layer::SerializedFields
static const FieldDescriptor	ProtocolName
	Field descriptor for the layer protocol name.
static const FieldDescriptor	ProtocolId
	Field descriptor for the layer protocol ID.
static const FieldDescriptor	Length
	Field descriptor for the layer length.
static constexpr uint16_t	MaxID = 1
	Maximum field ID used by the layer.

Detailed Description

Fields written by VrrpLayer's serializeLayer(), in addition to Layer::SerializedFields.

Member Function Documentation

all()

static std::vector<FieldDescriptor> pcpp::VrrpLayer::SerializedFields::all ( )

inlinestatic

Returns

All field descriptors for VrrpLayer
