pcpp::SomeIpLayer::SerializedFields Struct Reference

#include <SomeIpLayer.h>

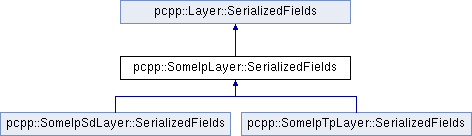

Inheritance diagram for pcpp::SomeIpLayer::SerializedFields:

Static Public Member Functions
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::Layer::SerializedFields
static std::vector< FieldDescriptor >	all ()

Static Public Attributes
static const FieldDescriptor	ServiceID
	Field descriptor for the service ID, written as a hex value.
static const FieldDescriptor	MethodID
	Field descriptor for the method ID, written as a hex value.
static const FieldDescriptor	ClientID
	Field descriptor for the client ID, written as a hex value.
static const FieldDescriptor	SessionID
	Field descriptor for the session ID, written as a number.
static const FieldDescriptor	ProtocolVersion
	Field descriptor for the protocol version, written as a number.
static const FieldDescriptor	InterfaceVersion
	Field descriptor for the interface version, written as a number.
static const FieldDescriptor	MessageType
	Field descriptor for the raw message type value, written as a number.
static const FieldDescriptor	MessageTypeName
	Field descriptor for the message type name, written as a string (see SomeIpLayer::MsgType).
static const FieldDescriptor	ReturnCode
	Field descriptor for the return code, written as a number.
static constexpr uint16_t	MaxID = Layer::SerializedFields::MaxID + 9
	Maximum field ID used by SomeIpLayer.
Static Public Attributes inherited from pcpp::Layer::SerializedFields
static const FieldDescriptor	ProtocolName
	Field descriptor for the layer protocol name.
static const FieldDescriptor	ProtocolId
	Field descriptor for the layer protocol ID.
static const FieldDescriptor	Length
	Field descriptor for the layer length.
static constexpr uint16_t	MaxID = 1
	Maximum field ID used by the layer.

Detailed Description

Fields written by SomeIpLayer's serializeLayer(), in addition to Layer::SerializedFields.

Member Function Documentation

all()

static std::vector<FieldDescriptor> pcpp::SomeIpLayer::SerializedFields::all ( )

inlinestatic

Returns

All field descriptors for SomeIpLayer
