pcpp::RapidStpLayer::SerializedFields Struct Reference

Fields serialized for RapidStpLayer, including its base layer fields. More...

#include <StpLayer.h>

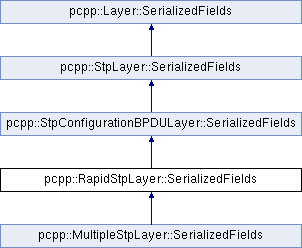

Inheritance diagram for pcpp::RapidStpLayer::SerializedFields:

Static Public Member Functions
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::StpConfigurationBPDULayer::SerializedFields
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::StpLayer::SerializedFields
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::Layer::SerializedFields
static std::vector< FieldDescriptor >	all ()

Static Public Attributes
static const FieldDescriptor	Version1Length
	Version 1 length, in bytes.
static constexpr uint16_t	MaxRapidFieldID
	Maximum field ID used by this layer.
Static Public Attributes inherited from pcpp::StpConfigurationBPDULayer::SerializedFields
static const FieldDescriptor	Flags
	Raw BPDU flag bits.
static const ObjectFieldDescriptor< BridgeIdSerializedFields >	RootId
	Root bridge identifier containing priority, system identifier extension and MAC address.
static const FieldDescriptor	PathCost
	Root path cost, in host byte order.
static const ObjectFieldDescriptor< BridgeIdSerializedFields >	BridgeId
	Bridge identifier containing priority, system identifier extension and MAC address.
static const FieldDescriptor	PortId
	Port identifier, in host byte order.
static const FieldDescriptor	MessageAge
	BPDU message age, as returned by getMessageAge().
static const FieldDescriptor	MaximumAge
	BPDU maximum age, as returned by getMaximumAge().
static const FieldDescriptor	TransmissionInterval
	BPDU transmission interval, as returned by getTransmissionInterval().
static const FieldDescriptor	ForwardDelay
	Forward delay, as returned by getForwardDelay().
static constexpr uint16_t	MaxConfigurationFieldID = StpLayer::SerializedFields::MaxStpFieldID + 9
	Maximum field ID used by this layer.
Static Public Attributes inherited from pcpp::StpLayer::SerializedFields
static const FieldDescriptor	ProtoId
	BPDU protocol identifier, as an unsigned integer in host byte order.
static const FieldDescriptor	Version
	BPDU protocol version.
static const FieldDescriptor	Type
	BPDU type (0 for configuration, 2 for RSTP/MSTP, 128 for TCN).
static constexpr uint16_t	MaxStpFieldID = Layer::SerializedFields::MaxID + 3
	Maximum field ID used by this layer.
Static Public Attributes inherited from pcpp::Layer::SerializedFields
static const FieldDescriptor	ProtocolName
	Field descriptor for the layer protocol name.
static const FieldDescriptor	ProtocolId
	Field descriptor for the layer protocol ID.
static const FieldDescriptor	Length
	Field descriptor for the layer length.
static constexpr uint16_t	MaxID = 1
	Maximum field ID used by the layer.

Detailed Description

Fields serialized for RapidStpLayer, including its base layer fields.

Member Function Documentation

all()

static std::vector<FieldDescriptor> pcpp::RapidStpLayer::SerializedFields::all ( )

inlinestatic

Returns

All field descriptors, including the inherited fields
