pcpp::NDPLayerBase::SerializedFields Struct Reference

#include <NdpLayer.h>

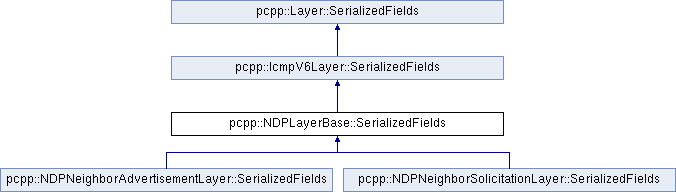

Inheritance diagram for pcpp::NDPLayerBase::SerializedFields:

Static Public Member Functions
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::IcmpV6Layer::SerializedFields
static std::vector< FieldDescriptor >	all ()
Static Public Member Functions inherited from pcpp::Layer::SerializedFields
static std::vector< FieldDescriptor >	all ()

Static Public Attributes
static constexpr uint16_t	MaxID = IcmpV6Layer::SerializedFields::MaxID + 1
	The highest field ID used by NDPLayerBase.
static const FieldDescriptor	Options
	Array of NDP options; elements described by Option.
static const FieldDescriptor	Option
	One option's type name; an Options element, not included in all()
Static Public Attributes inherited from pcpp::IcmpV6Layer::SerializedFields
static constexpr uint16_t	MaxID = Layer::SerializedFields::MaxID + 4
	The highest field ID used by IcmpV6Layer.
static const FieldDescriptor	Type
	ICMPv6 message type, as an integer.
static const FieldDescriptor	TypeName
	ICMPv6 message type, as a string.
static const FieldDescriptor	Code
	ICMPv6 message code, as an integer.
static const FieldDescriptor	Checksum
	Checksum, in hexadecimal notation.
Static Public Attributes inherited from pcpp::Layer::SerializedFields
static const FieldDescriptor	ProtocolName
	Field descriptor for the layer protocol name.
static const FieldDescriptor	ProtocolId
	Field descriptor for the layer protocol ID.
static const FieldDescriptor	Length
	Field descriptor for the layer length.
static constexpr uint16_t	MaxID = 1
	Maximum field ID used by the layer.

Detailed Description

Fields written by NDPLayerBase's serializeLayer(), in addition to IcmpV6Layer::SerializedFields.

Member Function Documentation

all()

static std::vector<FieldDescriptor> pcpp::NDPLayerBase::SerializedFields::all ( )

inlinestatic

Returns

All field descriptors for NDPLayerBase
